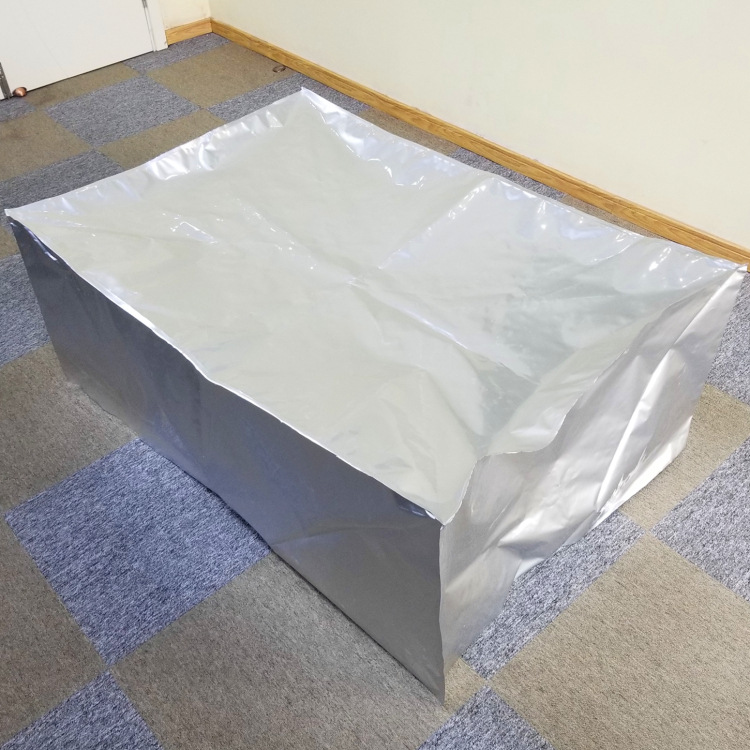

Silver Aluminium Foil Cover For Vacuum Packing

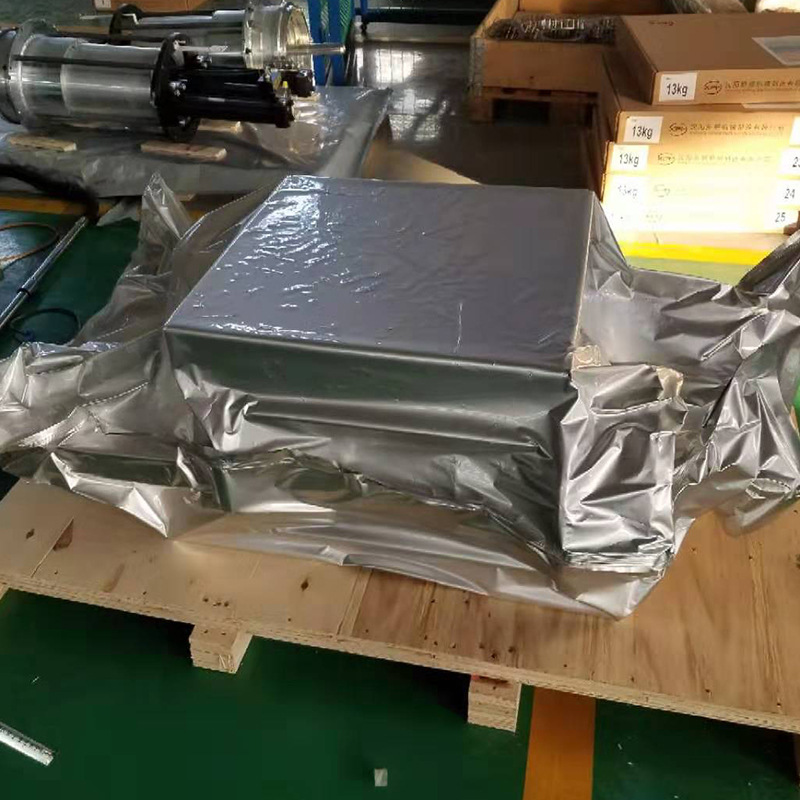

Because what we used foil material contains a fiber reinforced layer, it has good puncture resistance to irregular protrusions of equipment, instruments and mechanical components, and is not limited by size and shape, so it is especially suitable for mechanical equipment, instruments, guide rails, and shafts. , anti-rust protective packaging for plates, welding electrodes, cable wires, military equipment, etc. It can effectively avoid the occurrence of surface rust, paint peeling, friction and extrusion damage caused by ocean transportation of export products. Has been used in Germany, the United States, Japan, Spain. . . and other enterprise product packaging.

This 3D barrier package can be installed with a one-way exhaust valve, a one-way inflation valve, vacuuming and nitrogen flushing for double protection of the product.

And can be installed with an observation window, which can visualize the internal situation, keep track of the internal humidity, and do not need to unpack the package during customs inspection.

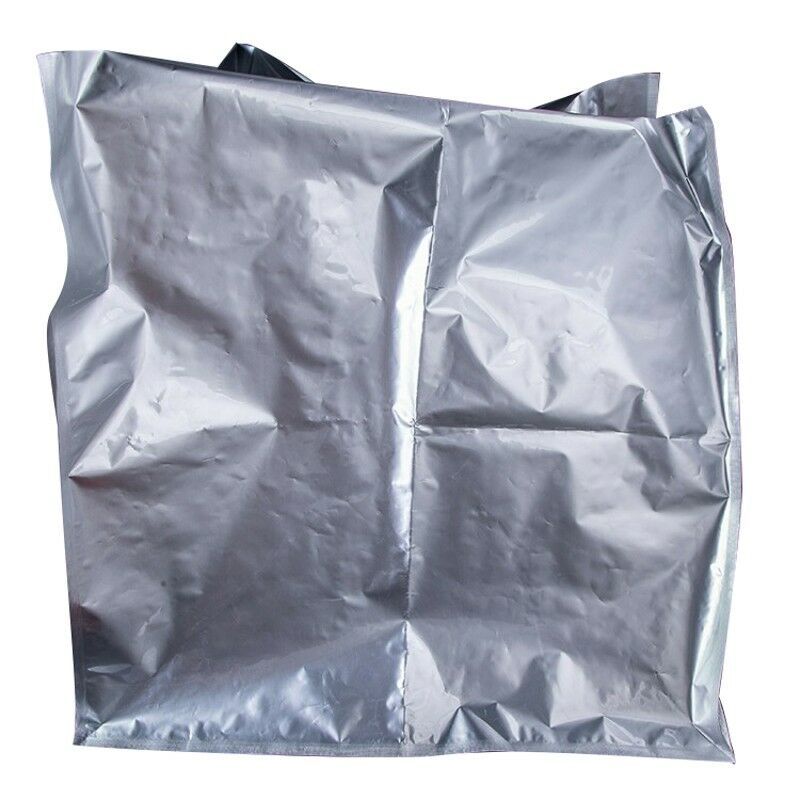

Product Name: Aluminum Foil Bag


Product structure: divided into three-layer aluminum foil bags (PET/AL/CPE, BOPP/AL/CPE) or four-layer aluminum foil (PET/AL/NY/CPE, BOPP/AL/NY/CPE)


Appearance: opaque, silvery white, shiny.


Product specifications: thickness 0.1mm, 0.12mm, 0.14mm, 0.15mm three-sided or two-sided sealing, the sealing edge width is 10mm/8mm/5mm, the product size can be customized according to customer needs.


Bag type: flat pocket, ziplock bag, organ bag, yin and yang bag, zipper bag, three-dimensional bag


Antistatic value: 10 (8-11 power) Ω


Static shielding: <30v


Puncture strength: ≥10N


Heat sealing temperature: 220~260℃


Storage environment: temperature≤38℃, humidity≤90%


Quality system: ISO 9001, ISO 14000; Product quality certification: RoHS


Product features: good barrier properties, heat sealing properties, shading properties, high temperature resistance, low temperature resistance, oil resistance, fragrance retention; non-toxic and tasteless; softness and other characteristics. Vacuum packaging can be carried out, and aluminum foil bags of different composite materials and thicknesses can be customized according to different specifications. Products comply with environmental protection, SGS, ROHS and other inspection reports.

Scope of application: It is suitable for electronic product packaging that is sensitive to static electricity, such as optoelectronic modules, semi-finished products/finished products of PCB boards, and needs anti-static, moisture-proof or anti-electromagnetic interference.
